The Graphite Anode in pH controlled cells

Just about all amateur Chlorate cells are run without any pH control. The pH of these cells increases from neutral to approx. 10 after a few hours of operation due to escape of Chlorine gas from the cell. When the pH gets high it is impossible for any more Chlorine to escape and the pH stabilizes. The high pH is the main reason for most of the Graphite erosion. When acid is added to the cell continously or at fairly short time intervals the pH can be maintained in the region of 6.8. This is the 'sweet spot' for maximum current effeciency and gives low Anode erosion. The rate of addition for 12% HCl is in the region of 0.134ml per hour per amp when the cell has run for about two days. You need larger acid additions before this.

Sodium Chlorate cell No. 1

Current efficiency
Days
% CE
0 to 1
35
1 to 2
80
2 to 4
66
4 to 6
84
6 to 9
90
9 to 11
81
11 to 14
79
14 to 18
72
18 to 20
42
20 to 23
42
Cell details
Temperature21°C
Volume2.2 liters
Anode area 153 cm2
Anode CD 28 to 34 Amps/cm2
Current 4.2 to 5.2 amps
Cathode area 37 cm2
Total ah 2484ah
Total Chlorate 1278 grams
Overall CE 78%
A pH controlled Sodium Chlorate cell was set up to investigate the effect of pH contol on Anode erosion and CE. The particulars are shown in the table. There were four Titanium Cathodes, two flat and two wire. The backs of the flat Cathodes were covered with plastic to keep the current density on the Cathodes high so as to keep unwanted reductions (Chlorate and Hypochlorite being converted back to Chloride) at a minimum. No additives like Chromate etc were added to the cell. The cell was ran for a total of 23 days.
Acid (12% HCl) into cell was 1.8ml per hour for the first two days. Then decreasing to 0.6 over the next 4 days and left in that region untill stopped. Sometimes I addes some acid (few ml) manually if I though pH was getting away. Sometimes I turned acid off for some hours if pH seemed to drift low. See the second Na Chlorate cell for more accurate acid additon figures. Acid was stopped on day 18 as the pH seemed to stabalize at 6.8 without any additions of acid. This may be a usable indicator of when it is a good time to stop a Graphite Anode cell to avoid Anode erosion.

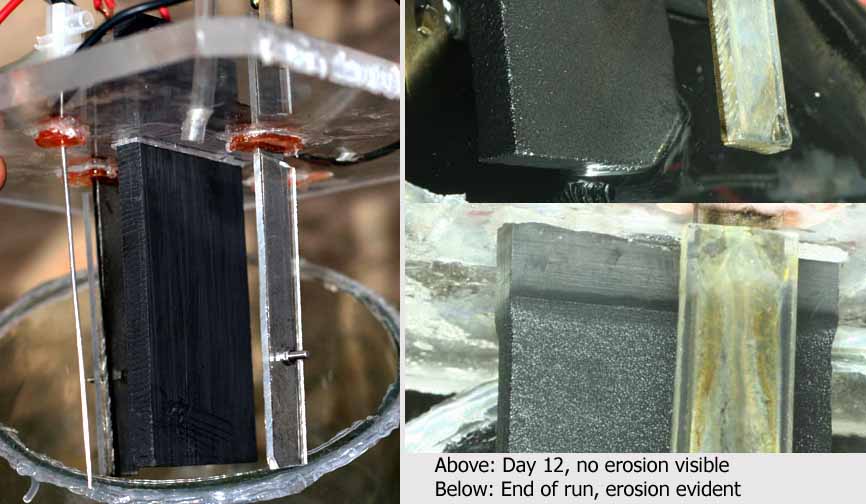

The Anode erosion is pictured below. 96% (in my estimation) of the erosion took place in the last four days of operation when Chloride when to 25 grams per liter (500 g/l Chlorate). Thus the absolute minimum Chloride concentration that must be observed to avoid Anode meltdown is 30g/l. Perchlorate was detected at the end of day 23 (cell was then stopped) at a Chloride concentration of 10g/l.
The electroylye was boiled and the Graphite let settle for a few days. There was a strong yellow colour in the clear electrolyte above the Graphite sludge.


[Cell Anode and Cathodes and erosion]



Sodium Chlorate cell No. 2

A second Na Chlorate cell was set up using the same Anode and cell. The acid addition was more controlled this time with a total of 200ml 12% HCl added to the cell. The cell was insulated so that it ran at a higher temperature. Current into cell and CD on Anode/Cathodes was similar to first cell run. Once again the Anode erosion was very low with a total of 4.6 grams of Graphite sludge, equal to 6.2 grams Graphite sludge per KG Sodium Chlorate produced. This may not be the total Anode erosion story as some Graphite may be converted into Carbon Dioxide? When the cell run was complete, the cell contents was boiled and let settle for 3 days. most of the electrolyte was syphoned away which left approx. 170ml of electolyte containing all the Graphite sludge. This was filtered through a 12cm filter paper. There was a yellow color in the clear electrolyte.

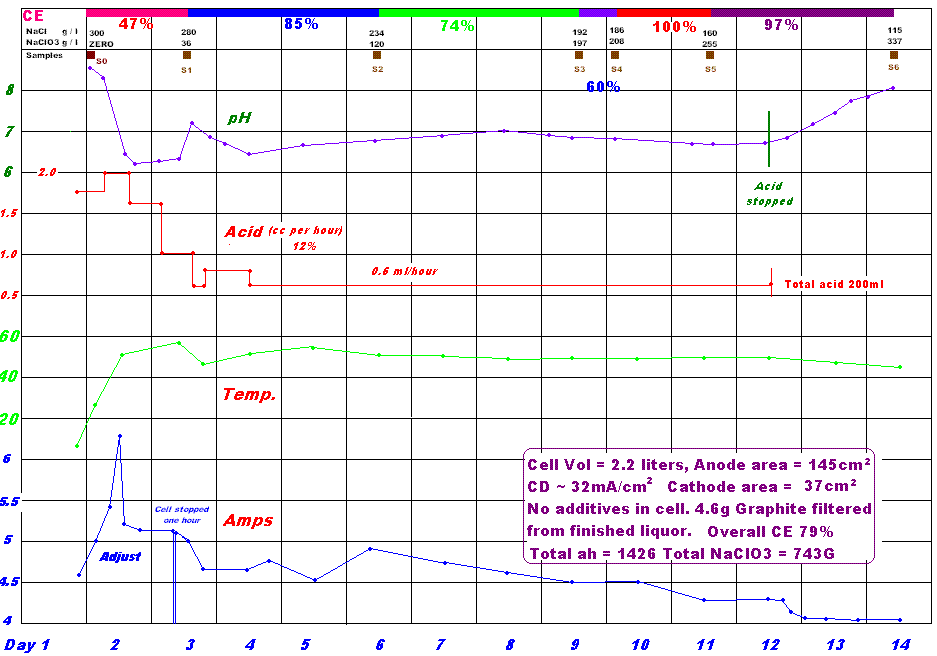

Details of the run are shown in the graph below.

[Graph of cell parameters]

It would appear that is is best to run the cell on past the 100 grams per liter Chloride point (to perhaps 50 or 40 grams per liter) as Anode erosion is OK and CE is still very high (highest point in run at around 100g/l Chloride in this run!). There would also be more Chlorate to harvest and it is easier to harvest it, as the concentration of Chlorate is higher and the concentration of Chloride lower.
There is little point in trying to run the cell hot as CE obtained in the first Na Chlorate cell run at 20°C was 78% which is practically the same as the CE for this cell at 50°C.



Potassium Chlorate cell run

The same cell as above was run with K Chloride. The cell was run for 7 days at an average of 4.5 amps and a temperature of 20°C. Total ah into cell was 842. K Chlorate extracted by freezing the cell contents was 422 grams giving a CE of 66%. The cell could of course be run for longer but the cell was filling up with solid K Chlorate and actually interfering with it's operation as the Anode was very close to the bottom of the cell. The Chlorate also gathered on the Anode throughout the run but this did not seem to effect the cells operation.
Acid additions were a bit erratic due to various external reason but when the cell was running steady the acid addition was similar to the NaCl cells above.
When the cell was first started the KCl solutions pH was measured at 6.4. Three ml of acid was added to the cell to give the acid a bit of a 'head start' which took the pH to 1.9 The rate of acid going into cell from the pump was 1.8 ml per hour (similar to start of other NaCl cells above). Two hours later, with terrible smell coming from the cell, pH was measured at 0.3. The acid was turned off for 4.5 hours when pH was measured to be 7.6. Twenty ml (large amount) of acid was added to cell to reduce pH to 7.4. The rate of acid being pumped in was increased to 3.3ml per hour (large amount). 13.5 hours later the pH was at 6.8 and more normal acid additions resumed.
It would appear that it is a very bad idea to add acid at the start of the cell run. Just set up pump and let the cell takes it's course.

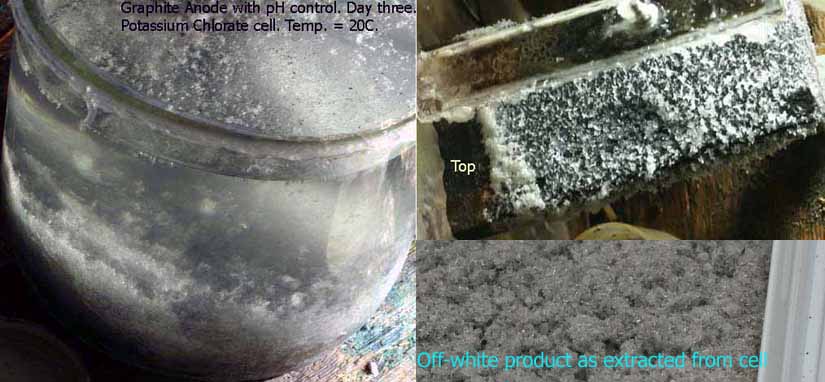

[KCl cell and Anode and product]
